DAC Expansion Unit

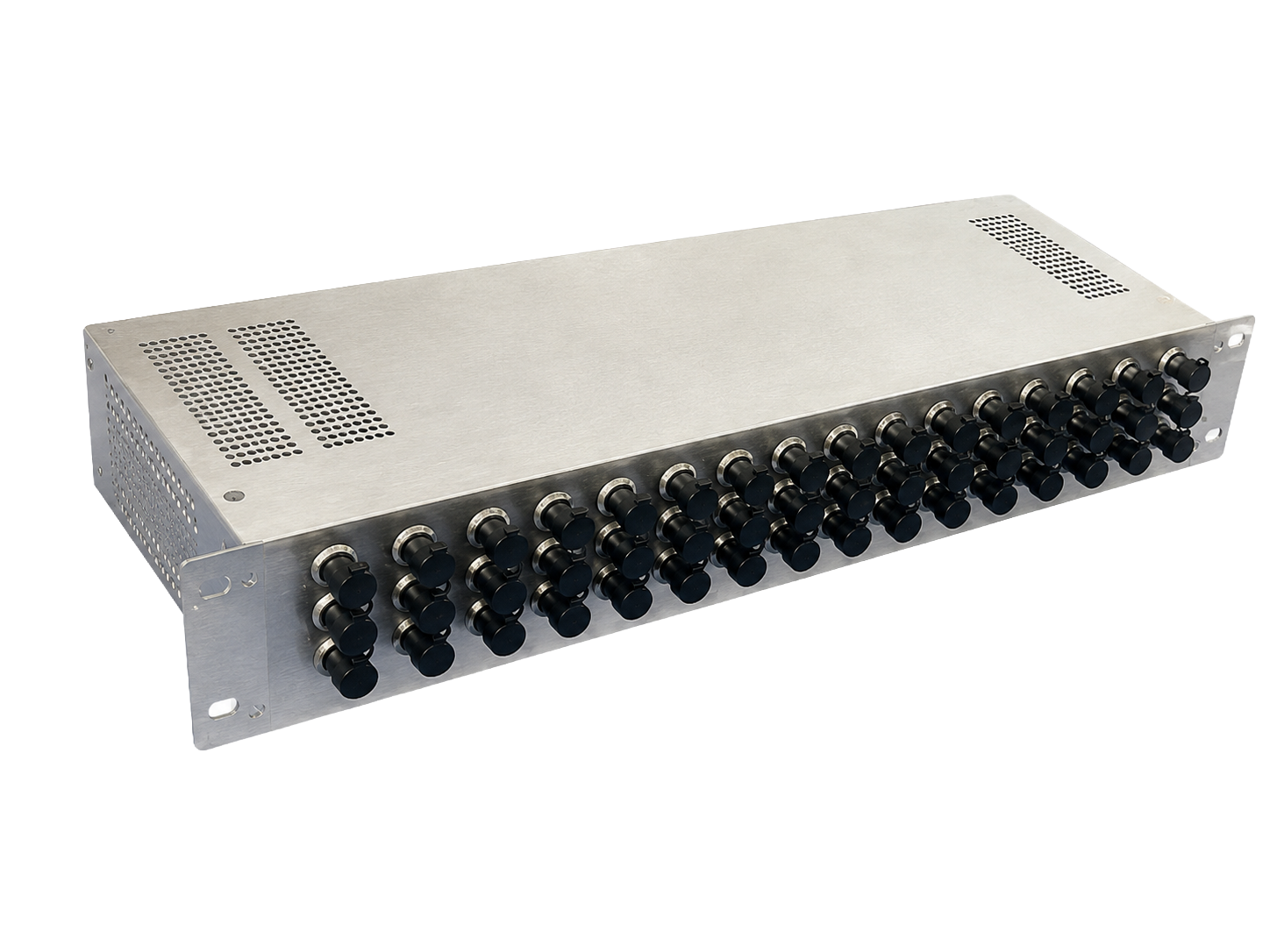

The Model 5232 DAC Expansion Unit provides a clean BNC breakout interface for the Acroamatics Model 682M DAC mezzanine card. Designed for use with the 682M-32 and 682M-8 configurations, the unit brings multi-pin card edge or rear panel connections out to an accessible I/O end cap, making it easier to connect, monitor, and distribute signal I/O from the telemetry processing system.
Available in 32-channel and 8-channel configurations, the Model 5232 gives users access to digital-to-analog outputs, analog-to-digital inputs, and discrete outputs in a rackmount breakout format built for lab, range, and system integration environments.
Key Features
For use with the Acroamatics Model 682M DAC mezzanine card
Available as 5232-DAC-32 for 32-channel configurations or 5232-DAC-8 for 8-channel configurations
Supports up to 32 digital-to-analog output channels and up to 16 analog-to-digital input channels
Supports up to 32 discrete outputs, 0–28 V
Includes 3 ft. interconnecting cable
Simplified Signal Access for the 682M
The Model 5232 is built to make 682M signal I/O easier to access and manage. Instead of working directly from dense multi-pin connectors on the TDP rear panel or card edge, the expansion unit routes those signals to a front-accessible BNC breakout panel. This gives engineering teams a cleaner way to connect test equipment, monitor signals, and integrate DAC, ADC, and discrete I/O into their telemetry workflow.
