PCI Card Receiver
The RDM207 (PCI) Single Channel Digital RF/IF Receiver is an integrated solution consisting of an RF Signal Processor, 2 Demodulators, 2 Bit Synchronizers, and 2 Frame Synchronizers (Pattern Detectors) contained on a single slot PCI card. This state-of-the-art module provides a compact, cost-competitive, flexible solution to a wide variety of communications link scenarios.
The Model 4426 processes 3 RF Bands: S Band, 2185 MHz to 2485 MHz; Upper L Band, 1700 MHz to 1850 MHz; Lower L Band 1427 MHz to 1545 MHz. Additional RF bands are available (i.e., IF 1KHz to 180MHz, P-Band 100 MHz to 1100 MHz, C-Band …). Multi-band options are also available.
Form Factor: PCI Single Slot
Single Channel Card
RF Frequencies:
- S-Band 2185 MHz to 2485 MHz (Std)
- UL-Band 1675 MHz to 1850 MHz (Std)
- LL-Band 1427 MHz to 1545 MHz (Std)
- P-Band (CIF) 100 MHz 1150MHz
- C-Band 4400 MHz to 5250 MHz
- IF 100Hz to 80 MHz*
- Other Frequencies Available*
Wide Dynamic Range: > 80dB with <8 dB noise figure
3 Demodulators: PCM / PSK*, 1 RF, 2 SCs* (Per Channel)
Multi-Waveform Demodulation Including: PCM/FM, SOQPSK, BPSK, QPSK, OQPSK, & ARTM Tier 0, 1
Forward Error Correction (FEC)
- 2 Viterbi Decoders R=1/2, 2/3*, 3/4*, 7/8*
- LDPC- IRIG/CCSDS* R=1/2, 2/3*, 4/5*, 7/8*
Antena Tracking Control
The demodulation process, as well as the baseband bit synchronization process, is totally performed in the digital domain. Signal acquisition is performed by scanning the IF within the programmed acquisition band centered about the selected Carrier frequency. PM / PSK waveforms are additionally scanned for acquisition at the subcarrier frequencies. Once signal acquisition is complete, synchronized signal tracking is performed, whereby continuous validation of the lock state is maintained.
A variety of optional FEC decoders are available, and two fully programmable frame synchronizers (pattern detection) are provided with the bit synchronizer. Bit Synchronizer data is output via TTL and RS-422 outputs from the card.
Additional Features
2 Bit Synchronizers (Per Channel)*
- 50 bps to 10 Mbps BPSK (20 Mbps*)
- 5 bps to 10 Mbps PCM/FM (20 Mbps*)
- 50 bps to 20 Mbps QPSK (40 Mbps *)
2 Frame Synchronizers per Channel
70 MHz, IF Inputs & Outputs
Tape /Playback (IRIG 106) Inputs & Outputs
IRIG-B Time Input/Output
BER measurement; test & real-time
*OPTIONAL Features

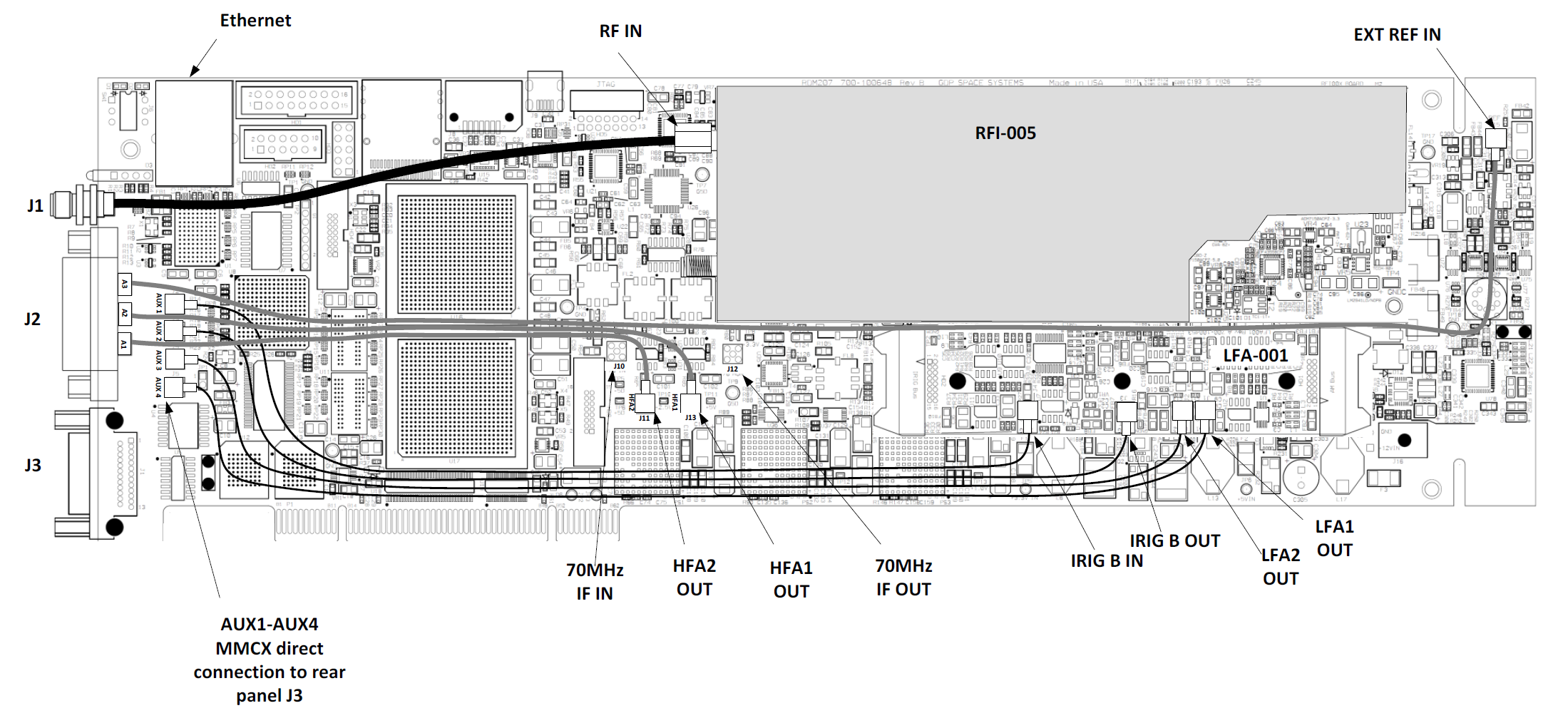

RDM207_IO & Cables
Figure 1 – RDM-207 I/O Map Showing Standard Wiring
Note: The 70MHz IF IN is analogous to AUX2 on the 4426. The 70MHz IF OUT is after the analog AGC but before the A/D converter. These are
not connected in the standard wiring. The LFA-001 daughter board is required for LFA1, LFA2, IRIGB IN, and IRIGB OUT.
Ordering Codes
| MODEL NUMBER | DESCRIPTION |
| RDM207-01 RF (SEE RDM NOTE 1) |
RF Single Channel L & S Band Digital Receiver (PCI Card – equivalent of previous RDM207-1S Order Code, includes cables). Base Unit Includes: * L, S, C & CIF/P Bands Frequencies (IRIG 106) * PCM/FM Demod (ARTM 0) to 20Mbps * SOQPSK Demod (ARTM 1) to 40Mbps * BPSK/QPSK/OQPSK (20 Mbps BPSK/40 Mbps QPSK) * Bit Sync and Frame Sync (20 Mbps BPSK/40 Mbps QPSK) * Viterbi Decoder (K=7;Rate 1/2) * Built in BERT and PRN /Code Generator Functions * Standalone User GUI * WITH I/O Cables PN 731-100470-01 |
| RDM207-02 IF (SEE RDM NOTE 1) |
IF Single Channel IF Digital Receiver (PCI Card – equivalent of previous RDM207-1S Order Code, includes cables). Base Unit Includes: * 1 kHz to 180 MHz (Tunable) * PCM/FM Demod (ARTM 0) to 20Mbps * SOQPSK Demod (ARTM 1) to 40Mbps * BPSK/QPSK/OQPSK (20 Mbps BPSK/40 Mbps QPSK) * Bit Sync and Frame Sync (20 Mbps BPSK/40 Mbps QPSK) * Viterbi Decoder (K=7;Rate 1/2) * Built in BERT and PRN /Code Generator Functions * Standalone User GUI * WITH I/O Cables PN 731-100470-02 |
| RDM207-03 RF (SEE RDM NOTE 1) |
RF Single Channel L & S Band Digital Receiver (PCI Card) Base Unit Includes: * L, S, C & CIF/P Bands Frequencies (IRIG 106) * PCM/FM Demod (ARTM 0) to 20Mbps * SOQPSK Demod (ARTM 1) to 40Mbps * BPSK/QPSK/OQPSK (20 Mbps BPSK/40 Mbps QPSK) * Bit Sync and Frame Sync (20 Mbps BPSK/40 Mbps QPSK) * Viterbi Decoder (K=7;Rate 1/2) * Built in BERT and PRN /Code Generator Functions * Standalone User GUI * WITHOUT I/O Cables PN 731-100470-03 |
