Model 3022AP Real-Time Mobile Telemetry Data Server & Analyzer
Acroamatics’ Model 3022AP is a third generation portable, low-latency multi-stream telemetry data processing and analysis unit. Based on Intel Core i7 motherboard technology, its PC chassis provides the ideal platform with which to host low-latency, card-embedded multi-function telemetry processing cardsets.
2 – 6 PCM Stream Chapter 4 and IRIG 218-20 TM Processing
17.3″ Built-in high res Front Display
10x USB 3.0 (6 rear panel & 4 internal header mounted)
RDM207 PCI RF Receiver Card installable L/S/C bands

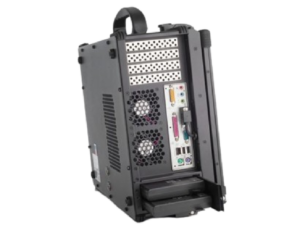

Portable Rugged “Lunchbox” Design for ease of mission mobility
Full Featured local & Network ADAT Display & Analysis Tool
Additional Features
2 – 6 PCM Stream Chapter 4 and IRIG 218-20 TM Processing
Real-time OS Independent Card Embedded Dynamic Software Decom and EU Processing
4th Gen MD1632AP Dual Stream 50 + Mbps PCIe “all-in-one” Telemetry Processor Card
4th Gen MD1635AP PCIe real-time SHARC® Multi-Stream EU Processor – to 6 MS/Sec rates
ARTM TIER 0/I/II Multi-Band RF/ IF RDM207 Receiver Card
Full featured local & network ADAT Display & Analysis Tool
Modular and extendable TM Data Services – per decom module
Real-time Raw and Processed Mission Data Recording
CH 10/11 format Compliant Data Products, and direct UDP Input
World Class 8 bps – 40 Mbps Bit Synchronizers
Multi-Stream Dynamic 64 Mbps PCM Simulator / Encoder
Card embedded Windows Independent low latency CVSD
Supports Multiple Ext Monitors
PCIe Telemetry Cards
Acroamatics cards can process anything from a single PCM stream to sixteen streams of complex telemetry data simultaneously in a single chassis, and now include the option of a new generation integrated high-performance RF receiver/demod PCI module.
Refer to specific module data sheets for complete capabilities descriptions. Assistance before ordering is recommended to ensure proper configuration.
Custom Configurations & Special Designs
Acroamatics has the hardware and software expertise necessary to meet the most complex processing challenges. Our system and card-level product capabilities allow us to quickly and effectively configure, enhance, and field solutions in response to individual requirements and evolving range and aircraft testing standards. Aircraft data bus, receiver, communications modules, and a wide variety of software application tools are supported by the Model 3022AP with no special modification. Acroamatics is an experienced integrator of large multi-vendor systems, with facilities and expertise to assemble, test, and deliver solutions specifically tailored to your needs, from individual portable to large integrated rack-based solutions.
