High Performance Compact Portable TM System
The Acroamatics’ Model 4032 Dual Stream, real-time Compact Telemetry decom solution. the 4032AP is remarkably size and cost-effective dual stream PCM storage and processing solution, capable of ingesting serial PCM with or without synchronous clock in any IRIG approved PCM format at rates to 40 Mbps.
Compact, Notebook Size
< 7 lbs. total weight
Capacity (2 PCIe slot 2500AP / 3 PCIe slot 2510AP)
Full Function Bit Sync/Decom/Time/Sim/Encoder, dual stream configuration
0-40+ Mbps Decom, IRIG Ch 4, 5,7, 8, 9, 10/11 & TMoIP 218-20
Features Model 1632AP-2 PCIe Card embedded, Windows OS Independent 106 Ch 4 class 1 & 2 low latency Dual-Stream Decom
Additional Features
Optional Range Quality tunable 40Mbps PCM Bit Sync
Integrated onboard SSD Real-Time Raw and Processed Data Recording
Dual-Stream 0-40 Mbps PCM Serial Rec/Playback configs

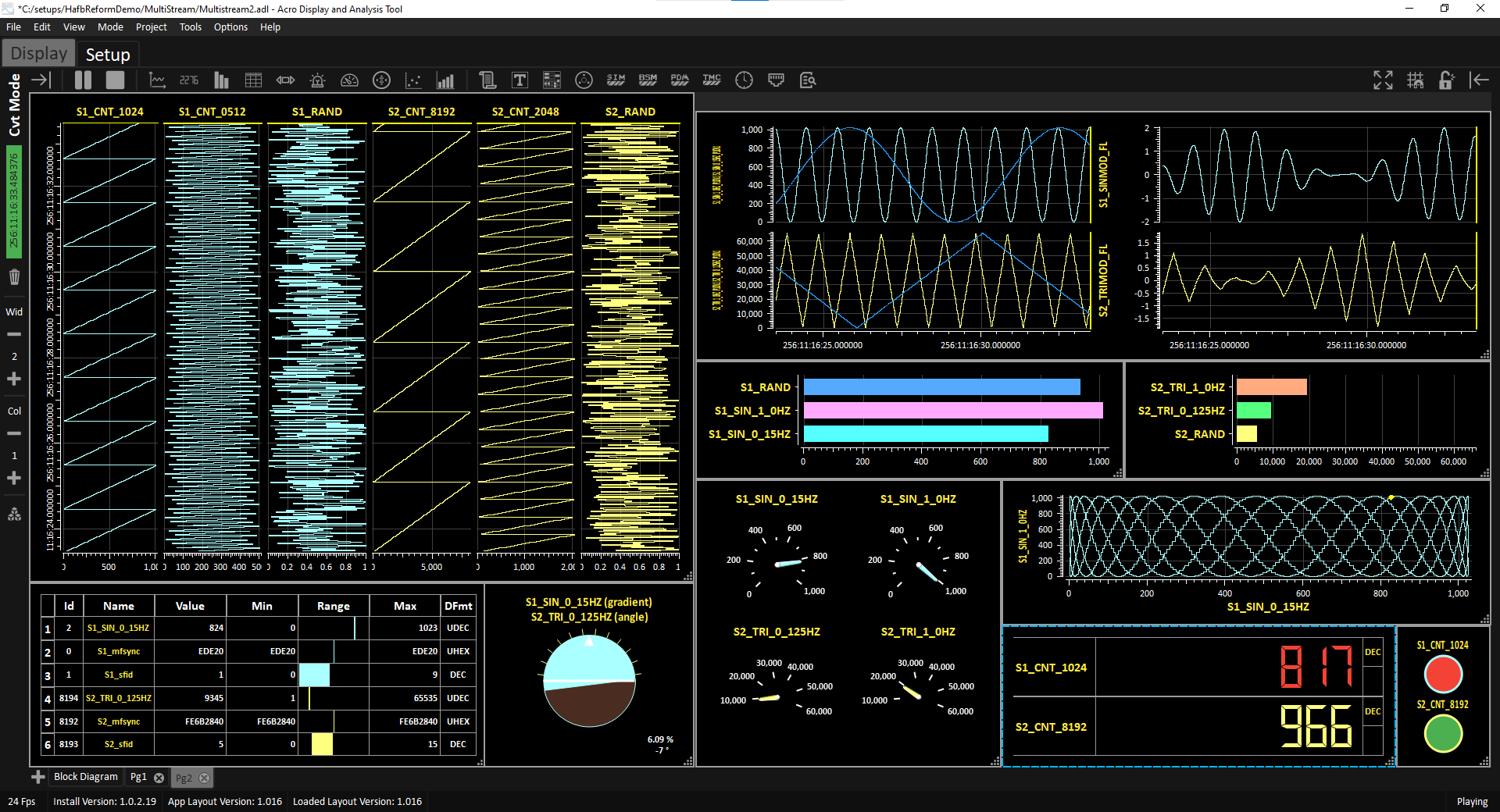

Networked host processing & data services featuring new ADAT Desktop Display & Analysis SW
CH 10 format Compliant Data File Import/Export Data Tools
Fully Supported API
Compatible with companion multi-stream enterprise Acroamatics Model 2900AP, 2510AP, and portable 3022AP TDP systems.
Configuration Options
| 4032AP | Dual Stream (1632AP-2AP/674DM) Decom/PCM Sim/IRIG time with ATSS telemetry system software suite and ADAT widget based data display, analysis, and operations dashboard application program. |
| Optional PDSP | Option to implement complete TDP TM server configuration by adding 1635AP, creating a portable turn-key ground station. |
| Battery | Optional battery back-up quoted on request |
