Data Conversion & Distribution System
The GDP Space Systems’ 9200 Series Data Conversion and Distribution System is a modular product that is scalable and can be user-configured to convert and/or distribute a large selection of data channels.
The 9200 Series units are designed to be a cost-effective and flexible solution to a wide range of signal conversion and distribution applications. The 2U 19” rack mount unit can hold up to 16 various pluggable modules, each with the ability to accept and properly terminate a variety of signal types and then convert these signals to other industry standards.
Multiple Chassis Configurations: 2U 19” Rack-mount Chassis
- Holds up to 16 conversion/distribution modules
Convert and distribute the following signal types: Fiber, TTL, RS-422, ECL, LVDS, Analog, RS-232, RS-485, RS-530, Ethernet (10/100/ 1000), Video, +++
Multiple Daisy-Chain and Global Busses
Fiber Optic Optical Isolation: SFP Based, Single Mode & Multimode
Unique Conversion / Distribution Applications
Power Status Indicators
Redundant power supply included

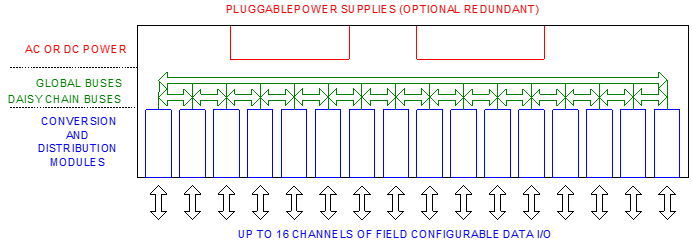

The chassis also provides a variety of global and daisy-chain buses so that signals can be received by one module and then sent to other modules in the chassis to address signal distribution applications. Figure 1 shows a simple block diagram of these chassis functions.

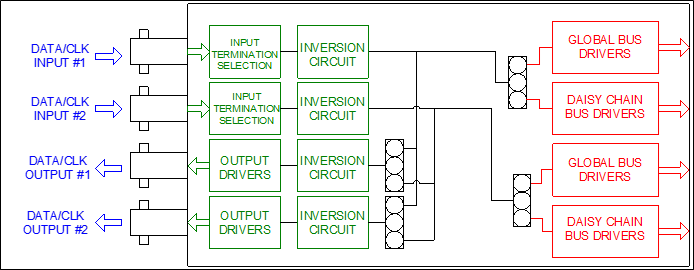

Figure 2 shows a simple block diagram example of a typical conversion module. Jumpers are provided to allow any input to be directed to any output on the module. Any input can also be simultaneously directed to any of the daisy chain and global buses for mass distribution. All inputs and outputs can be independently inverted
Ordering Codes
Chassis
| 9200-M02-B | 2U 19” rack-mount chassis, 16 module slots, Including Redundant AC power supply |
| 9200-BP | Blank Panels |
Cards
4 Channel Out |
|
| 9200-0014 | 4 TTL out BNC, DC to 35 Mbps |
| 9200-0024 | 4 RS-422 out Triax, DC to 35 Mbps |
TTL In |
|
| 9200-1113 | 1 TTL in BNC, 3 TTL out BNC, DC to 40 Mbps |
| 9200-1123 | 1 TTL in BNC , 3 RS-422 in Triax, DC to 35 Mbps |
| 9200-1191 | 1 TTL in BNC, 1 fiber out (SFP), 100k to 40 Mbps |
| 9200-1212 | 2 TTL IN BNC, 2 TTL OUT BNC, DC to 40 Mbps |
| 9200-1212-CC | 2 TTL in BNC, 2 TTL out BNC, DC to 40 Mbps with Code Converter IN and OUT |
| 9200-1212-R15 | 2 TTL IN BNC, 2 TTL OUT BNC, DC to 40 Mbps with Forward 15 Randomization |
| 9200-1222 | 2 TTL IN BNC, 2 RS-422 OUT Triax, DC to 35 Mbps |
| 9200-1232 | 2 TTL in BNC, 2 RS-232 out BNC, DC to 10 Mbps |
| 9200-1291 | 2 TTL IN BNC (Data and Clock), 1 Fiber OUT (SFP), 100k to 35 Mbps |
| 9200-1400 | 4 TTL IN-BNC, 0 TTL OUT- BNC (Output to Daisy Chain), DC to 35 Mbps |
RS-422 In |
|
| 9200-2123 | 1 RS-422 in Triax, 3 RS-422 in Triax, DC to 35 Mbps |
| 9200-2191 | 1 RS-422 in Triax, 1 Fiber out (SFP), 100k to 35 Mbps |
| 9200-2212 | 2 RS-422 in Triax, 2 TTL out BNC, DC to 35 Mbps |
| 9200-2222 | 2 RS-422 in Triax, 2 RS-422 out Triax, DC to 35 Mbps |
| 9200-2222A | 2 RS-422 in Triax, 2 RS-422 out Triax, DC to 40Mbps (Extended BR) |
| 9200-2232 | 2 RS-422 in Triax, 2 RS-232 out BNC, DC to 10 Mbps |
| 9200-2291 | 2 RS-422 in Triax (Data and Clock), 1 Fiber out (SFP), 100k to 35 Mbps |
RS-232 In |
|
| 9200-3222 | 2 RS-232 in BNC, 2 RS-422 out Triax, DC to 10 Mbps |
| 9200-3212 | 2 RS-232 in BNC, 2 TTL out BNC, DC to 10 Mbps |
ECL In/Out |
|
| 9200-6291 | 2 ECL in SMA (data and clock), 1 Fiber out (SFP), 100 kbps to 150 Mbps |
| 9200-6291HR/9162HR | High-Rate ECL to Fiber/Fiber to ECL (up to 550Mbps). NOTE: The same card will support both Transmit and Receiver. |
| 9200-9162 | 1 Fiber in (SFP), 2 ECL out SMA (Data & Clock), 100 kbps to 150 Mbps |
Fiber In/Out |
|
| 9200-91E1-XR | Fiber/Ethernet Xmit/Receive ** [SDM975]…ETHERNET |
| 9200-6291 | 2 ECL in SMA (data and clock), 1 Fiber out (SFP), 100 kbps to 150 Mbps |
| 9200-6291HR/9162HR | High-Rate ECL to Fiber/Fiber to ECL (up to 550Mbps). NOTE: The same card will support both Transmit and Receiver. |
| 9200-9112 | 1 Fiber IN (SFP), 2 TTL OUT (Data/Clock) BNC, 100k to 40 Mbps |
| 9200-9121 | 1 Fiber in (SFP), 1 RS-422 out Triax, 100k to 35 Mbps |
| 9200-9122 | 1 Fiber in (SFP), 2 RS-422 out (Data/Clock) Triax, 100k to 35 Mbps |
| 9200-9162 | 1 Fiber in (SFP), 2 ECL out SMA (Data & Clock), 100 kbps to 150 Mbps |
Time |
|
| 9200-0084 | 4 Analog Time Code out BNC (Analog Time Signal) |
| 9200-8183 | 1 Time Code in BNC, 3 Time Code out BNC |
| 9200-8184 | 1 Analog Time in and 3 Analog Time Out |
