Telemetry Data Recording
Explore Delta Telemetry’s advanced Telemetry Data Recording solutions—designed for reliable, high-precision data capture in demanding environments. Our recorders support mission-critical applications across aerospace, defense, and industrial sectors.
Our Data Recorder Products
Delta Telemetry’s data recorder product lineup offers robust, high-performance solutions for capturing and storing mission-critical telemetry data. Engineered for reliability in extreme conditions, our recorders support a wide range of formats, interfaces, and storage capacities to meet diverse operational needs. From flight testing to ground-based monitoring, our systems deliver precision and durability you can depend on.
Model 3500 Ethernet Data Recorder
GDP
Recording
Missile, Space
Model DRS8000P Portable Telemetry Recorder
Wideband
Recording
Missile, Space
Model DRS8200X Wideband Telemetry Recorder
Wideband
Recording
Missile, Space
Model DRS8300X Wideband Telemetry Recorder
Wideband
Recording
Missile, Space
Model DRS8500X Wideband Telemetry Recorder
Wideband
Recording
Missile, Space
Single Band RF Recorder
Wideband
Recording
Missile, Space
Multi-Band RF Recorder
Wideband
Recording
Missile, Space
Telemetry Event Data Recording Applications
Delta’s telemetry data recorders are engineered for a wide range of demanding applications where reliable data capture is essential. These systems are widely used in flight test, missile test, space launch monitoring, satellite applications, and other mission-critical aerospace and defense operations. Additionally, they support ground station recording, range telemetry, and industrial testing environments where high-speed, high-volume data acquisition is required. Delta’s recorders ensure accurate and secure data storage for post-mission analysis and compliance.
Flight Test
Captures high-speed telemetry data from aircraft systems for performance and critical test-point analysis.
Missile and Weapons Testing
Records critical in-flight data during weapons testing to support diagnostics and mission evaluation.
Space Launch Monitoring
Ensures accurate telemetry recording during launch sequences for real-time tracking and post-event analysis.
Ground Station Telemetry
Provides reliable data capture from remote systems for range operations, command, and control activities.
Ethernet Data Recorders from GDP
GDP Space Systems’ Model 3500 Ethernet Data Recorder is a high-performance, large-capacity streaming network recording system designed for Telemetry over IP (TMoIP), Voice over IP (VoIP), and Video over IP applications. Utilizing mature and field-proven recording technology, it ensures consistent and reliable recording and playback of streaming IP telemetry data.
Key Features:
- Standard Dual 10 Gigabit and Dual 1 Gigabit Ethernet Interfaces with options for additional I/O
- Separable Management and Data Network Interfaces
- Native IRIG-106 Chapter 10 Recording Format
- Storage Configurations to 53TB, Diskless (Network Boot & Storage), 22TB, 38TB & 53TB Configurations
- Options for additional I/O
The Model 3500 is engineered to meet the demands of mission-critical applications, offering robust performance and flexibility for various telemetry recording needs.
Telemetry Data (CH10) Recorders
Wideband Systems delivers high-performance recording solutions designed for mission-critical aerospace and defense telemetry applications. The DRS8000 Series is a flexible series of disk-based recording systems, offered in four different base units to optimize your mission. Each system can be configured with a wide variety of interfaces and control options tailored to meet any recording requirement, while maintaining strict compliance with the IRIG-106 CH10 Standard.
Wideband Interface Boards
Wideband Systems’ Interface Boards (IFBs) offer a versatile and modular solution for integrating diverse signal types into Wideband recording systems. Designed for high-performance applications in space, missile, satellite, flight, test, lab, and launch environments, these IFBs ensure seamless data acquisition and playback across various signal formats. Wideband Systems offers 25+ different IFBs and is happy to work with your team to develop custom boards to meet specific telemetry needs.
Key IFB Offerings:
- 4 CH Analog / 4 CH Digital PCM IFB: Combines four analog and four digital PCM I/O channels, with user-configurable analog inputs to accommodate various voltage ranges.
- 12 CH Digital PCM IFB: Provides twelve digital PCM I/O channels, supporting both single-ended TTL and differential RS-422 configurations, with data rates up to 40 Mbps.
- 2 CH IF (70, 140, or 370 MHz) IFB: Supports two intermediate frequency channels with automatic gain control to maintain consistent 0 dBm signal levels, ideal for IF applications.
- 8 CH Ethernet IFB: Offers eight Ethernet I/O channels capable of recording all network traffic or filtered packets based on IP addresses, catering to network telemetry needs.
- 2 CH SD/HD Video & Audio IFB: Facilitates two separate SD and HD-SDI video/audio record/playback channels using MPEG-2 and H.264 compression standards.
These interface boards are engineered to enhance the flexibility and scalability of telemetry recording systems, ensuring reliable performance in mission-critical operations.
Telemetry RF Recorders
Wideband Systems delivers high-performance RF recording solutions designed for mission-critical aerospace and defense telemetry applications.

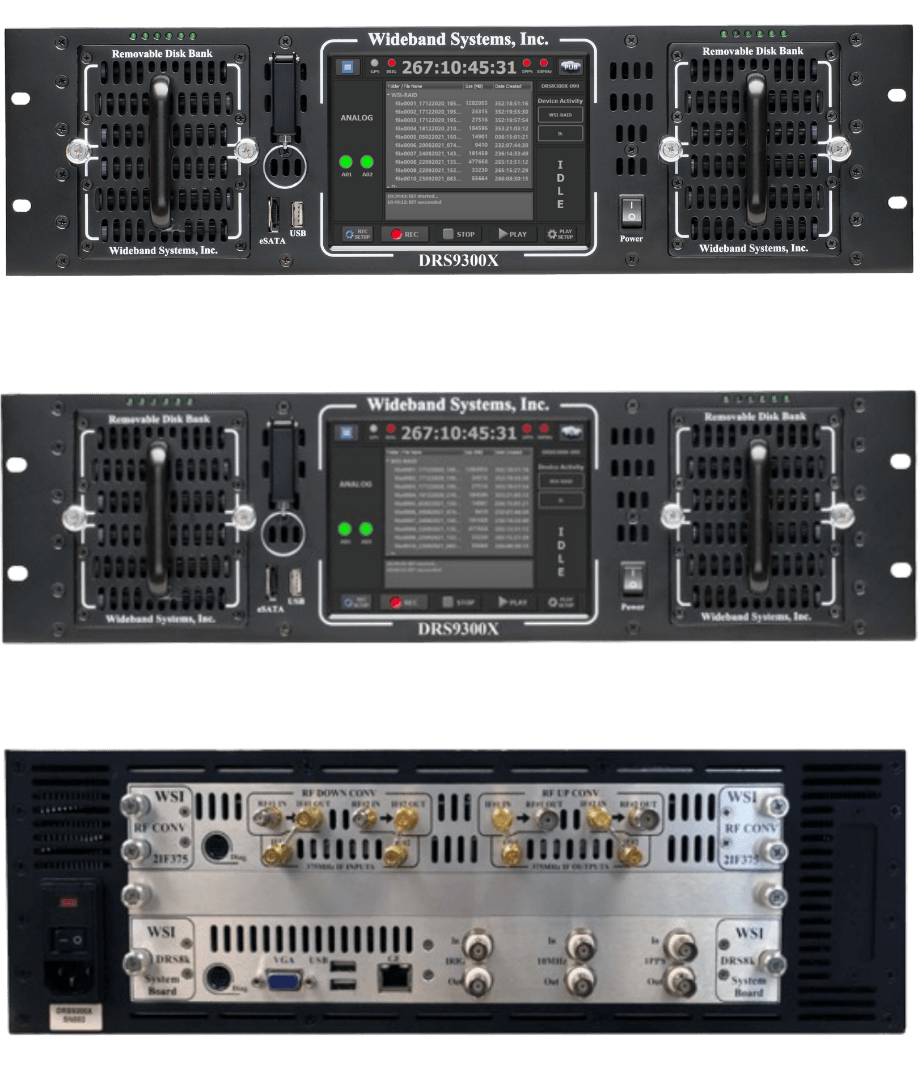

The DRS9300X/DRS9300X-MB is a high-performance member of Wideband Systems’ industry-leading Digital Recording System (DRS) family. Optimized for the RF recording market, the DRS9300X/DRS9300X-MB delivers exceptional bandwidth and signal fidelity while maintaining full compliance with the IRIG-106 Chapter 10 standard.
This system supports an integrated RF/IF Interface Module, providing flexible support across a wide range of RF recording applications. It employs 16-bit A/D and D/A converters and includes over 80 dB of Automatic Gain Control. The reconstructed RF output can be configured to follow the input signal or maintain a fixed output level, depending on mission requirements.
With configurations offering storage from 6.0 to 24.0TB and a data rate of 10Gbps, the DRS9300X/DRS9300X-MB is uniquely qualified for the most demanding RF recording requirements. It supports coverage across the P Band, L Band, S Band, and C Band spectrums, delivering a tailored solution for advanced signal intelligence and analysis.
Backed by Wideband Systems’ legacy of rugged, field-proven performance, the DRS9300X/DRS9300X-MB delivers unmatched capability in high-speed, high-resolution RF data acquisition and playback.
